Space Requirements
About Space Requirements
Required Space: 3200mm(w) x 5500mm(d) x 2850mm(h)
※ It can be installed as long as there is at least a space where a driver can fully swing.
Space between back wall to screen (for buffering): 400mm~
Projector to screen : 4500mm～
Tee to the back Tee to screen : 2500mm～
Tee to the back wall : 2100mm～
Tee to the sidewall : 2600mm～
※ Each distance to the rear wall and the left wall from the tee position can be less distance than stated dimentions depending on the swing width.
About examples

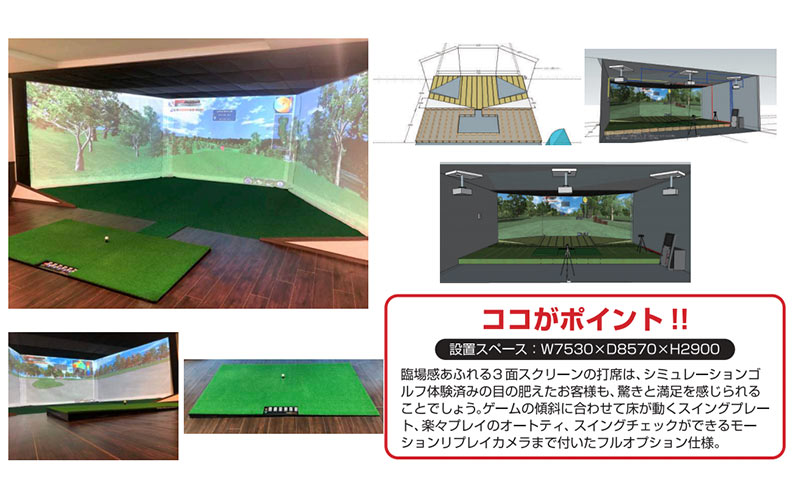

Required space :
7530mm(w) ｘ 8570mm(d) ｘ 2900mm(h)

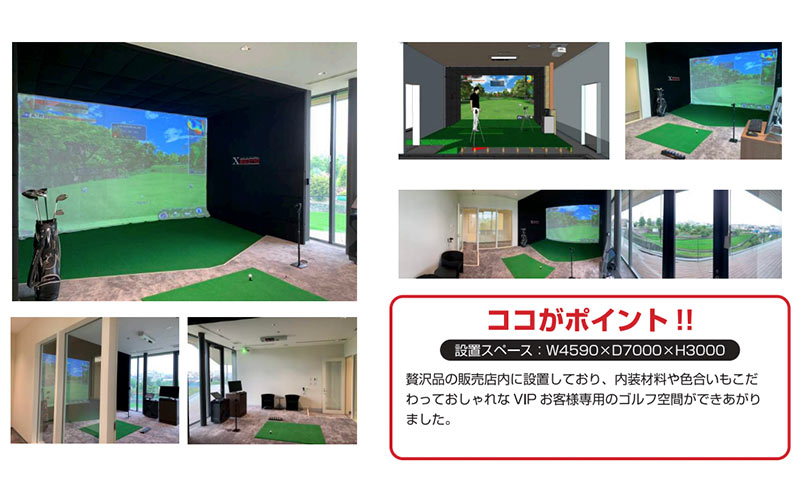

Required space :
4590mm(w) ｘ 7000mm(d) ｘ 3000mm(h)

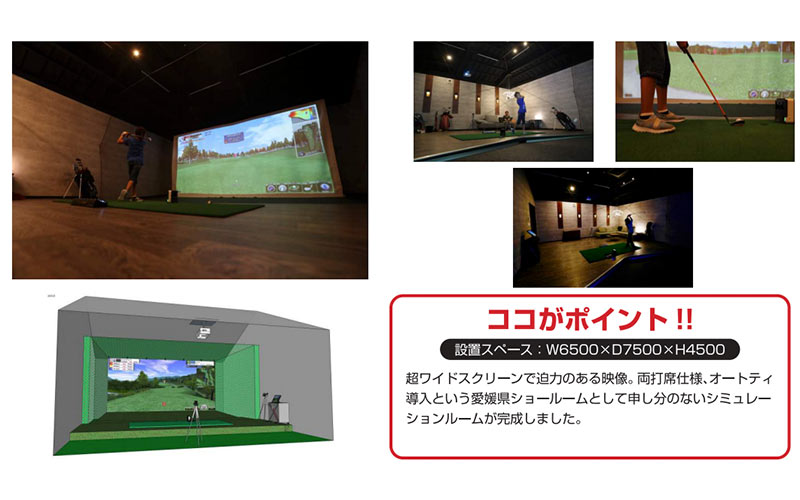

Required space :
6500mm(w) ｘ 7500mm(d) ｘ 4500mm(h)

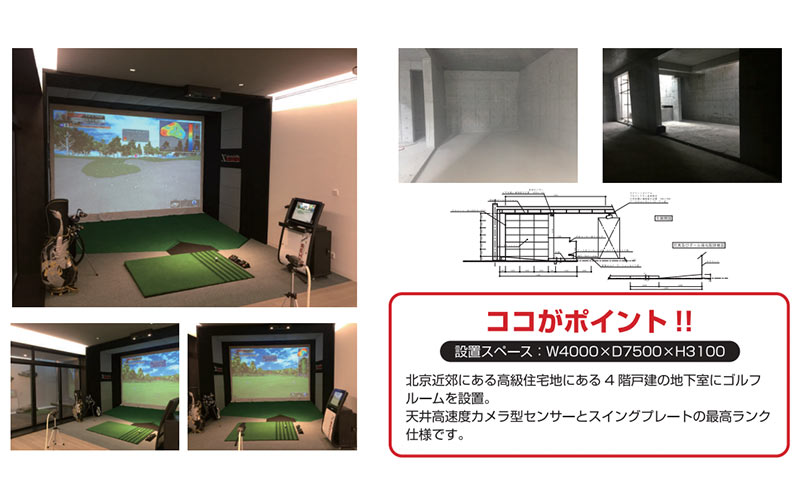

Required space :
4000mm(w) ｘ 7500mm(d) ｘ 3100mm(h)
About Screen
About Screen Sizes
| Screen | 4：3（Standard） | 16：9（Wide Screen） | ||
|---|---|---|---|---|
| inches | Height(mm) | Width(mm) | Height(mm) | Width(mm) |
| 130 | 1981 | 2642 | 1619 | 2878 |
| 140 | 2134 | 2845 | 1744 | 3099 |
| 150 | 2286 | 3048 | 1868 | 3321 |
| 160 | 2438 | 3251 | 1993 | 3542 |
| 170 | 2591 | 3454 | 2117 | 3764 |
| 180 | 2743 | 3658 | 2242 | 3985 |
| 190 | 2896 | 3861 | 2366 | 4206 |
| 200 | 3048 | 4064 | 2491 | 4428 |
| 210 | 3200 | 4267 | 2615 | 4648 |
| 220 | 3353 | 4470 | 2739 | 4870 |
| 230 | 3505 | 4674 | 2864 | 5091 |
| 240 | 3658 | 4877 | 2988 | 5312 |
| 250 | 3810 | 5080 | 3113 | 5534 |
| 260 | 3962 | 5283 | 3237 | 5755 |
| 270 | 4115 | 5486 | 3362 | 5976 |
| 280 | 4267 | 5690 | 3486 | 6198 |
About the Screen-To-Projector Ranger
| Screen Siz | Standard Lens (meters) | Short Focus Lens (meters) |
|---|---|---|
| 150inches | 4.7～6.2 | 3.7～4.8 |
| 200inches | 6.2～8.3 | 4.9～6.4 |
| 300inches | 9.4～12.5 | 7.4～9.6 |
※Distance to the screen is described as being from the front of the lens of the projector to the screen.
